Wall & Roof Cladding Systems

The wall cladding, roof cladding, and structural members used in the construction of American Outback Buildings are manufactured by Metal Sales Manufacturing Corporation. They have seventeen manufacturing sites located throughout the US, to enable cost effective production and delivery of our steel buildings.

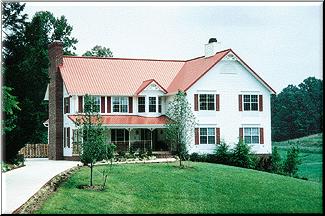

Classic-Rib

Classic Rib is one of the most versatile members of the Metal Sales family of quality products. Built for beauty, durability, and value, the Classic Rib profile is an exposed fastened, low profile panel offering 36" coverage and a trapazoidal rib on 9" centers. It is available in several guages, and a wide range of attractive colors. Classic Rib carries a 45 year warranty that guarantees your structure's beauty won't fade with time and wear.

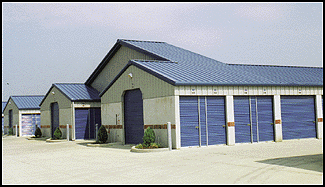

R Panel / PBR Panel

R panel and PBR Panel are two additional members of the Metal Sales family of quality products. Built for beauty, durability, and value, the R Panel and PBR Panel profiles are both exposed fastened, low profile panels offering 36" coverage and a trapazoidal rib on 12" centers. They available in several guages, and a wide range of attractive colors. R Panel and PBR Panel carry a 45 year warranty that guarantees your structure's beauty won't fade with time and wear.

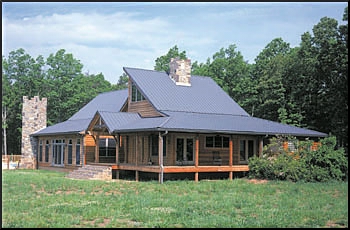

Stile

Stile is a architectual simulated clay, metal tile roof panel. Built for beauty, durability, and value, the Stile panel offers one meter (39.4") coverage with ribs on 5" centers. Stile is available in 26 GA, and six Kynar 500 (PVDF) colors.

Note: Stile must be applied over a solid substrate.

Color Chart for Stile panel only

Classic Green
Ocean Blue
Regal Red
Slate Gray
Spanish Clay
Tudor Brown

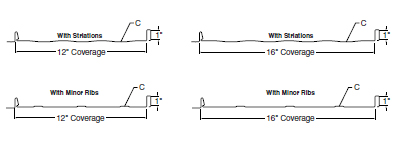

Image II



Image II panels are architectural panels with concealed fastening locations. They are available in both 12" and 16" widths, and feature a 1" rib height. They are available in both 26 ga and 29 ga. They must be applied over a soild substrate, with a 30# felt underlayment and a minimum
3:12 roof pitch.
The panels are available in MS Colorfast45 and Acrylic Coated Galvalume finishes.

Note: Image II must be applied over a solid substrate.

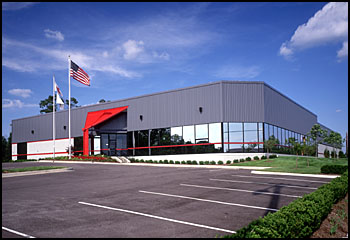

IC-72






IC-72 Panel is a member of the Metal Sales family of quality products. Built for beauty, durability, and value, IC-72 Panel is an exposed fastened, low profile panel offering 36" coverage with ribs repeating on 7.2" centers. IC-72 Panel is an optional 26 gauge product. It is available in the wide range of colors the Metal Sales MS Colorfast45 finish system offers. A 45 year warranty guarantees your structure's beauty won't fade with time and wear.

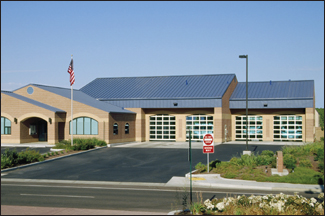

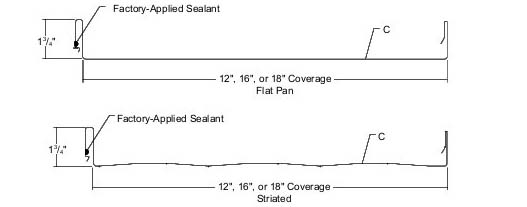

Vertical Seam

Architectural/structural integral Standing Seam panels are available in 12", 16", and 18" panel coverage. They feature a 1-3/4" rib height. They are available in 26ga and 24ga standard, 22ga optional. Standing Seam panels are a snap together panel system and require a minimum roof slope:3:12. The panels are attached with a concealed clip designed for thermal movement and include a factory applied side lap sealant. Up to a 4" blanket insulation may be used. The panels are available in the MS Colorfast45 finish system.
