Doors

American Outback Buildings is pleased to offer doors from Clopay's residential and
commercial series for our steel buildings. The available models are listed below.

Residential Doors

Model 73 Uninsulated

Model 4050 Insulated

Coachman Collection

Commercial Sectional Doors

Model 525

Model 525V

Commercial Roll-Up Doors

Model 150C, 155C, and 160C Coil Doors


Residential Doors

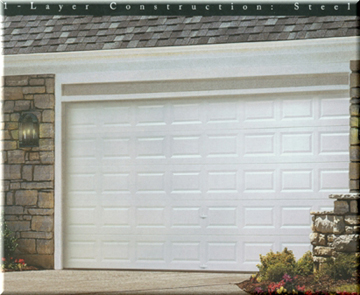

Model 73 Uninsulated



The Clopay Model 73 doors feature a raised panel woodgrain textured design for beauty,
plus added strength and protection. Full 2" thick door sections with box-shaped stiles
for strength and rigidity. Snug-fitting, tongue-and-groove section joints to help seal out wind and
blowing rain. Full width steel bottom rail with factory-installed weatherseal.

Classic Collection windows are available for either the top section of your garage door, or second section.
The panels come as clear glass, ready for decorative inserts in any of the patterns shown below.

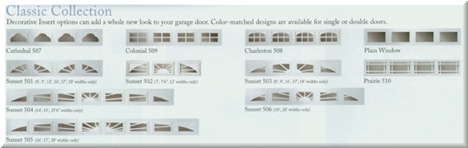

Classic Collection Lites

Color Chart

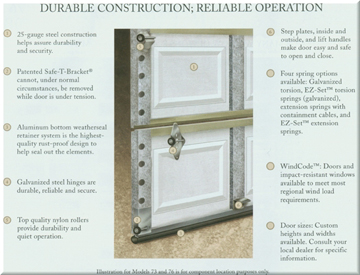

Model 73 Door Constuction Details

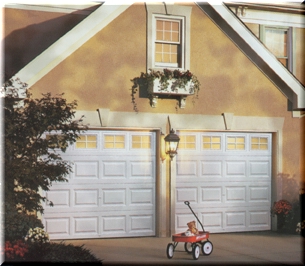

Model 4050 Insulated

The Clopay Model 4050 doors feature a raised panel woodgrain textured design for beauty,
plus added strength and protection. Full 2" thick door sections with box-shaped stiles
for strength and rigidity. Snug-fitting, tongue-and-groove section joints to help seal out wind and
blowing rain. Full width steel bottom rail with factory-installed weatherseal. The door features 1 3/8" thick
expanded polystyrene insulation bonded to the exterior and interior steel skins, yielding a door with an
R value of 6.5.

Classic Collection windows are available for either the top section of your garage door, or second section.
The panels come as clear glass, ready for decorative inserts in any of the patterns shown below.

Classic Collection Lites

Color Chart

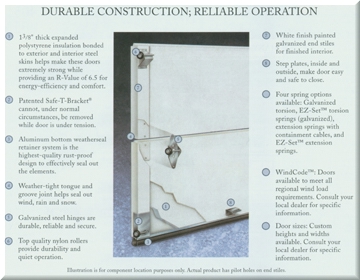

Model 4050 Door Constuction Details



Steel Carriage Style Garage Doors


The classic look and feel of wood.
The strength and durability of steel.

Elegant carriage house designs that are virtually maintenance free. The look and feel of wood combined with the durability and ease of steel gives your home the classic elegance created for today’s active lifestyle

Steel and Composite Carriage House Garage Door - Four Layer Construction



4 Layers - Steel + polystyrene insulation + steel + composite overlay.
Two insulation thickness options, both with a thermal break for improved energy efficiency. 2" R- Value 9.0; 1 3/8" R-Value 6.5
Heavy duty 14 gauge hinges for long lasting performance
High cycle nylon rollers for quiet and durable operation
Rust-proof, aluminum-bottom weather sel retainer helps protect the bottom of the door. Durable vinyl astragal is replaceable.
Custom composite overlay is woodgrain textured with detailed coped edges for improved aesthetics.

Galvanized torsion springs are corrosion-resistant and last 50% longer than industry standard springs. Due to some height and weight restrictions, not all product offerings include galvanized torsion springs.

Coachman Style Windows and Door Panels

Arched
Rectangular
Square
Solid

Coachman Windows: Available with Square, Rectangular and Arched Windows. Also available with solid top section. Optional beveled-look windows available. Patented clip-in window grilles for easy replacement and removal.

Series 1
Series 2
Series 3

Coachman Panels: 3 Design Series totalling 24 different panel and window combinations.

Coachman® Collection Carriage House Garage Door Hardware

Series 1 with standard hardware
(handles and step plate)
and optional Spade Strap Hinges
Series 2 with Optional
Fleur De Lis
Handles and Hinges
Series 3 with Standard Hardware
(handles and step plate)

Standard Decorative Hardware

Spade Lift Handle
Spade Step Plate

Optional Decorative Hardware

Optional antique black iron hardware provides the authentic look of a classic carriage house garage door.

Fleur De Lis Lift Handle
Door Stud
Ring Door Knocker
Fleur de Lis Handle
Lions Head Knocker
Decorative Handle with Keyhole
Fleur de Lis Hinge
Spade Strap Hinge

Factory Colors

Sandstone
Almond
White




Commercial Sectional Doors

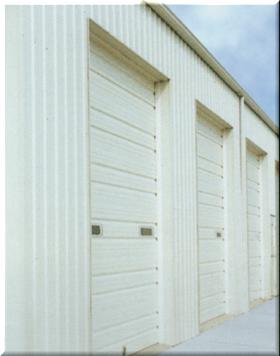

Model 525, 525V

The Clopay Model 525 and 525v doors are designed and constructed to provide an attractive, economical, and
trouble-free sectional door for commercial buildings.They feature a ribbed design for added strength, and are
easily motorized. A double steel construction offers rugged security. The Model 525 is an uninsulated door, while
the Model 525v is an insulated door with an R value of 6.6.

The Model 525 and 525V doors are available in two colors, White and Brown.

Color Chart

White
Brown






Construction Details

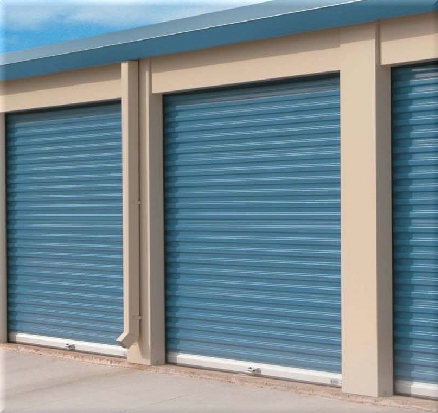

Commercial Roll-Up Doors

These high quality doors are designed for commercial and industrial facilities and provide the durability of
a full 26-gauge, heavy-duty exterior steel skin.

Model 150C - Light Duty applications
Model 155C - Medium Duty applications
Model 160C - heavy Duty applications

Features

• 26 ga. hot-dipped galvanized steel curtain with baked-on silicone polyester top coat
• Roll-formed guides of hot-dipped galvanized steel (18 ga. 150C, 16 ga. 155C, 12 ga. 160C)
• Self-lubricating wearstrips on curtain prevent metal-to-metal contact and muffle door noise
• Heavy-duty bottom bar withstands external elements
• Full bulb-type bottom weatherstrip ensures proper fit along irregular floors

Construction Details



Panels are prepainted inside and out to inhibit rust. Hot-dipped, galvanized steel is painted with primer and given a tough
oven-baked silicone polyester top coat, to provide the most rust-resistant steel door available.

Warranty Info

Color Chart

Model 150C Specifications

Corrugated Curtain: 26 gauge sheets, roll formed from ASTM A 653 grade 80 full hard steel, interlocked and seamed together to make a continuous curtain for full height of door. Full height felt tape on back of curtain prevents nesting and reduces
paint rubbing. Available in sizes up to 12' x 14'.
Finish Coat: Curtain is galvanized and prepainted with long-lasting silicone polyester paint.
Guides: Roll formed, 18 gauge galvanized guides are fitted with dual polyethylene wearstrips to reduce friction and muffle door noises. All guide attachment to jamb is performed through the guides without the addition of clips welded to the back of the guides.
Mini-Latch: Standard stainless steel cover, slide and four attachment bolts are factory installed. Latch accepts all industry padlocks, including 7/16" diameter shanks. Provision for cylinder lock is included.
Brackets: Factory installed galvanized reinforced 12 gauge brackets are designed to easily snap onto the guides, reducing installation time.
Bottom Bar: Roll formed clear acrylic coated galvanized steel reinforced with a 2" x 1-1/2" 11 gauge full width galvanized steel angle. The PVC bulb astragal provides positive contact with the floor. Lift handle(s) installed on exterior side of bottom bar and a nonrotting pull rope is attached to the inside angle.
Counterbalance: Oil-tempered helical torsion springs are factory lubricated to minimize friction and corrosion while increasing the spring cycle life. Spring wire conforms to ASTM A 229. All drums are fitted with a grease-filled, shielded radial ball bearing to contribute to a smoother operation and reduce wear and friction. Barrel is full width galvanized steel, which totally encloses the drum, springs and axle.
Ratchet Spring Tension Assembly: Factory installed on the end of the door axle and allows precise fine tuning of the initial spring tension. Increments of 1/8 turn are possible. Tensioner adjusts both springs equally at the same time from only one end of the door.
Wind Loading: Clopay WINDCODE® W3, W4 and W8 are available. Contact Commercial Information Assistance at 1-800-526-4301 for specific requirements.

Model 155C Specifications

Corrugated Curtain: 26 gauge sheets, roll formed from ASTM A 653 grade 80 full hard steel, interlocked and seamed together to make a continuous curtain for full height of door. Heavy-duty nylon striping attached to the curtain helps control curtain stretch and works in conjunction with the vinyl guide strip to reduce wear and deaden sound. Available in sizes up to 12' x 14'.
Finish Coat: Curtain is galvanized and prepainted with long-lasting silicone polyester paint.
Guides: Universal mount 2-1/2" wide, 16 gauge galvanized steel, requires no preinstallation modifications for wood, steel, concrete or masonry block applications.
Slide Bolt Lock: Assembly affixed to the bottom bar at each end of the door curtain fastens through the guide to securely keep the door locked and in the down position. Padlocks can be attached to the slide to further secure the door.
Brackets: Engineered and designed with deep embossing for strength and tested to withstand more than 1,200 pounds per pair. The installation friendly mounting brackets feature safe rounded edges and slots that allow for easy vertical adjustments as well as various installation preferences.
Bottom Bar: Roll formed clear acrylic coated galvanized steel reinforced with a 2" x 1-1/2" 11 gauge full width galvanized steel angle. The PVC bulb astragal provides positive contact with the floor.
Counterbalance: Oil-tempered helical torsion springs are factory lubricated to minimize friction and corrosion while increasing the spring cycle life. Spring wire conforms to ASTM A 229. 9-1/2" diameter drums allow for lower headroom requirements and are fitted with a grease-filled, shielded radial ball bearing to contribute to a smoother operation and reduce wear and friction. Barrel is full width galvanized steel, which totally encloses the drum, springs and axle.
Cam-action Spring Tension: Holding device allows quick, easy and equal adjustment of all springs equally at the same time from only one end of the door. Spring tension adjustment is accommodated by inserting a common 3/8" ratchet tool into the end of the drive shaft and rotating.
Operation: Up to 10' x 10' by means of manual push-up. A reduced drive chain hoist for smoother operation is standard for doors over 10' wide or 10' tall. Electric motor operation, either in-tube or jack-shaft, is also available.

Model 160C Specifications

Same features as the Model 155C with these exceptions:
Corrugated Curtain: Available in sizes up to 18' x 18'.
Guides: Universal mount 4" wide, 12 gauge galvanized steel, requires no preinstallation modifications for wood, steel, concrete or masonry block
applications.
Barrel and Drum: Diameter is 12".
Brackets: Engineered and designed with deep embossing for strength and tested to withstand more than 2,700 pounds per pair.
Cam-action Spring Tension: Spring tension adjustment is accommodated by inserting a common 1/2" ratchet tool into the end of the drive shaft and rotating.
Wind Loading: Clopay WINDCODE® W6 is available. Contact Commercial Information Assistance at 1-800-526-4301 for specific requirements.
